Pexraytech designs and manufactures battery-driven generators – and our PXR GEN160-09 is proof that big power can come in a compact package.
160 kV, 1 mA – that makes it a real battery-driven powerhouse, with the highest duty cycle and the longest battery life in its class.
While 160 kV may appear modest on paper, penetration capability is a critical parameter for real-world application. When paired with digital radiography (DR) equipment, the PXR GEN160-09 achieves results that confirm its technical strength.
A dedicated test series was conducted using multiple steel samples. The evaluation covered penetration, image quality, and exposure times. The results were as follows:

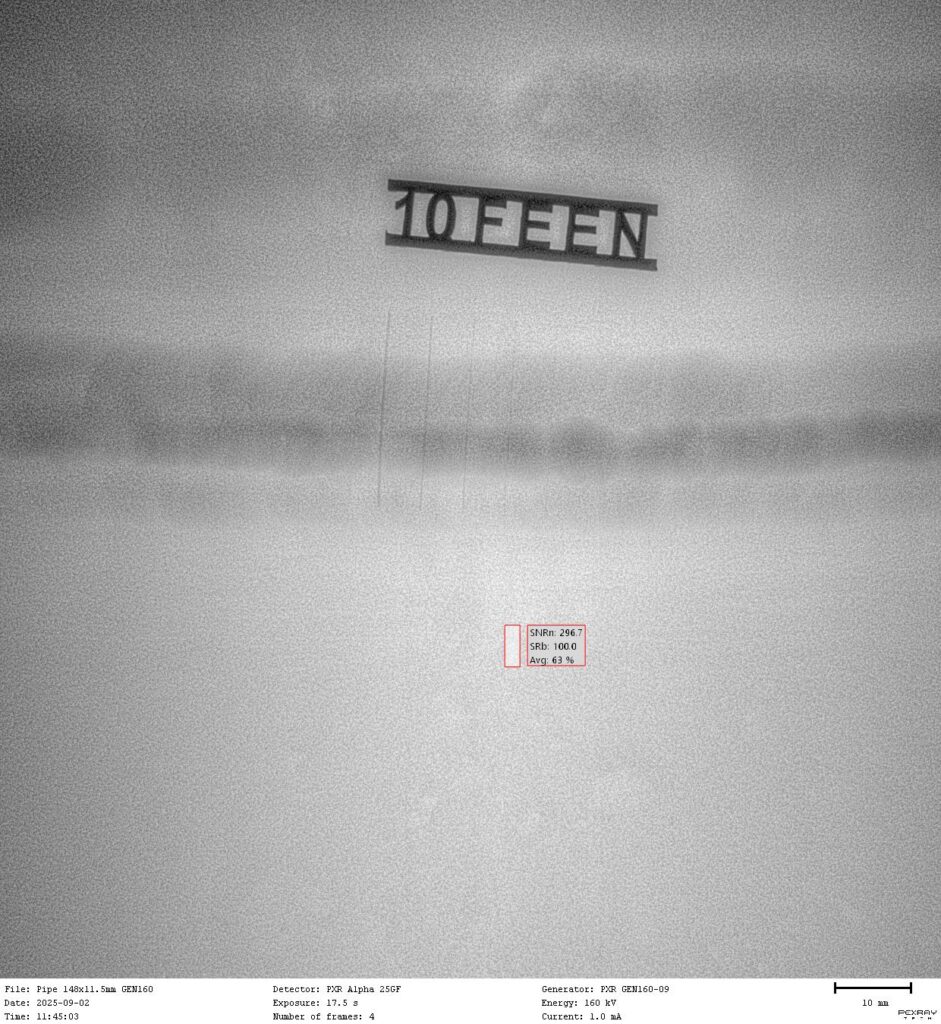

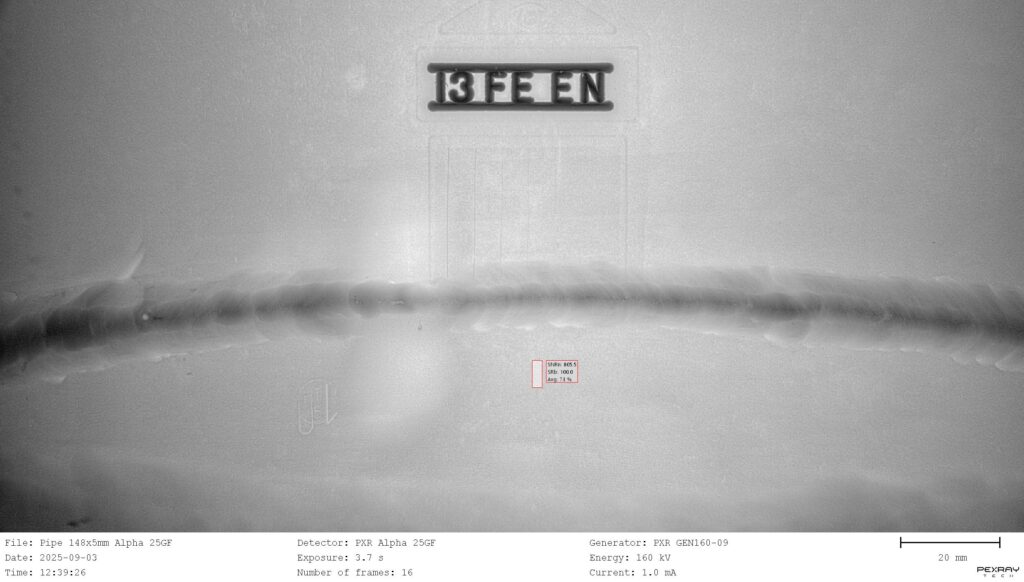

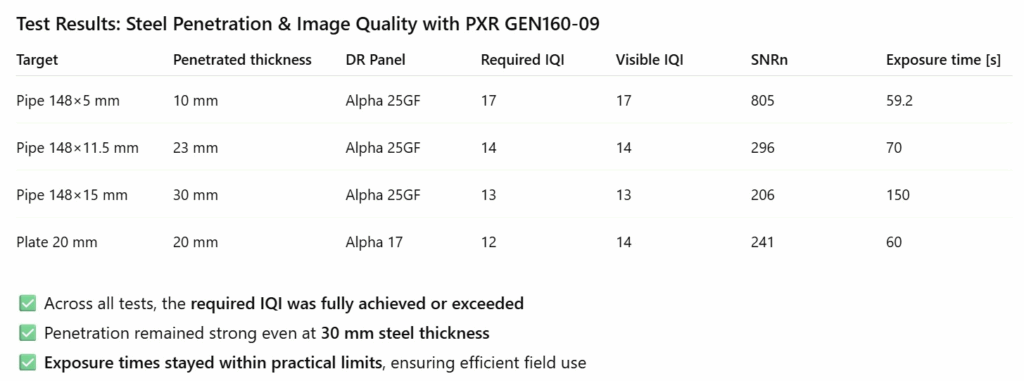

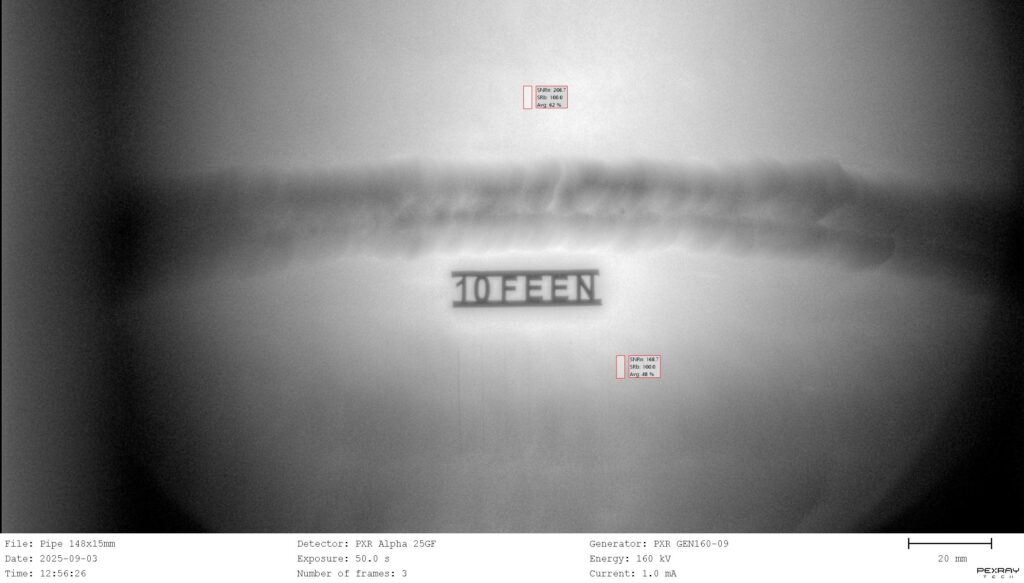

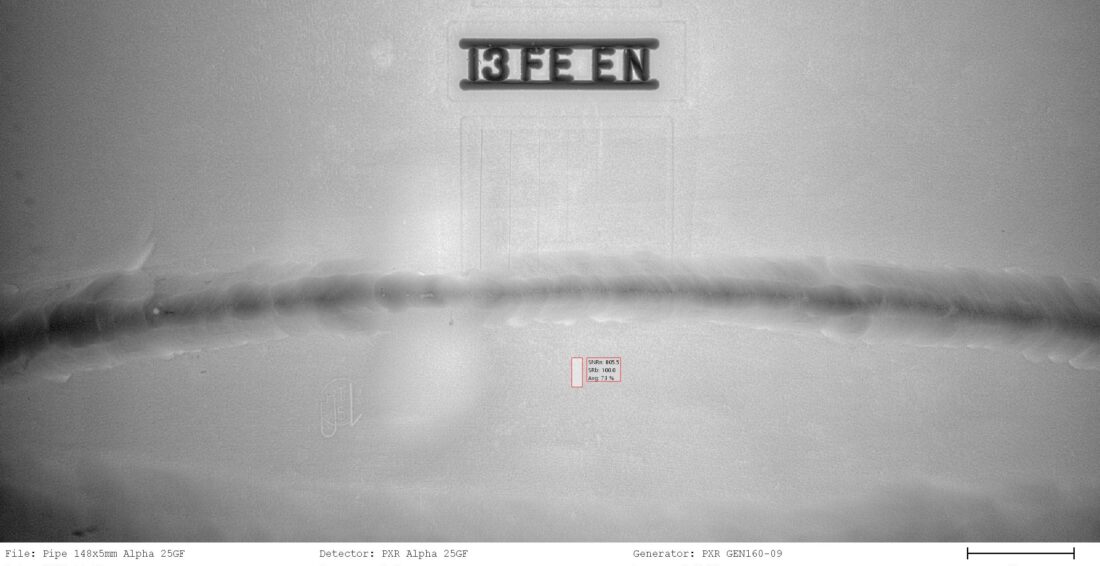

When paired with digital radiography equipment, the penetration is seriously impressive. We’ve run a full test series (see images and table attached below), and the results speak for themselves:
- Strong penetration across test samples
- Image quality requirements fully met according to ISO17636-2, class B
- Reasonable exposure times throughout
The PXR GEN160-09 isn’t just portable power – it’s a reliable workhorse built for demanding field applications.
