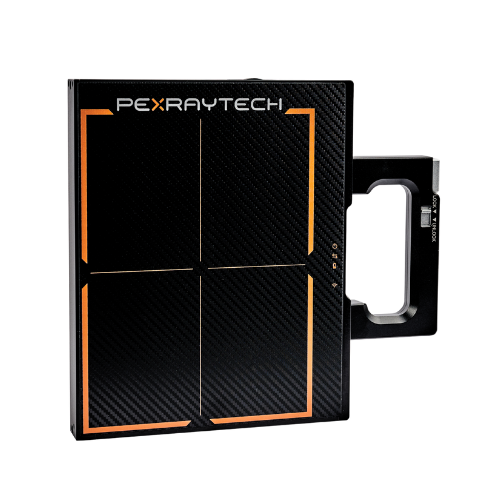

PXR Alpha 17, engineered for excellence, our sensor boasts ruggedness that defies any weather condition or temperature, ensuring reliability in every environment.
Equipped with state-of-the-art image technology, our sensor guarantees exceptional image quality with minimal noise, delivering crystal-clear visuals for precise weld inspections. The optimal resolution yields a diverse range of applications and ensures that every detail is captured with precision.
Finally, size matters, featuring a large sensor area packed into a compact frame, our design strikes the perfect balance between portability and performance.
| Pixel size | 75 μm, resolution: 6.67 LP/mm @ Magnification of 1 |
| ISO 17636-2:2022 compliance | Panel unsharpness: D11 |
| Active area [W × H] | 172.8 mm × 230.4 mm |
| External dimensions [W × H × D] | 208.2 mm × 256.5 mm × 27.5 mm |
| Weight | 2.4 kg |
| X-ray voltage | maximum 450 kVp |
| Isotope sources | Se-75 or Ir-192 |
| Battery life | Up to 8 hours, hot-swappable without turning off the detector |
| Operating temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Protection level | IP 67 |
