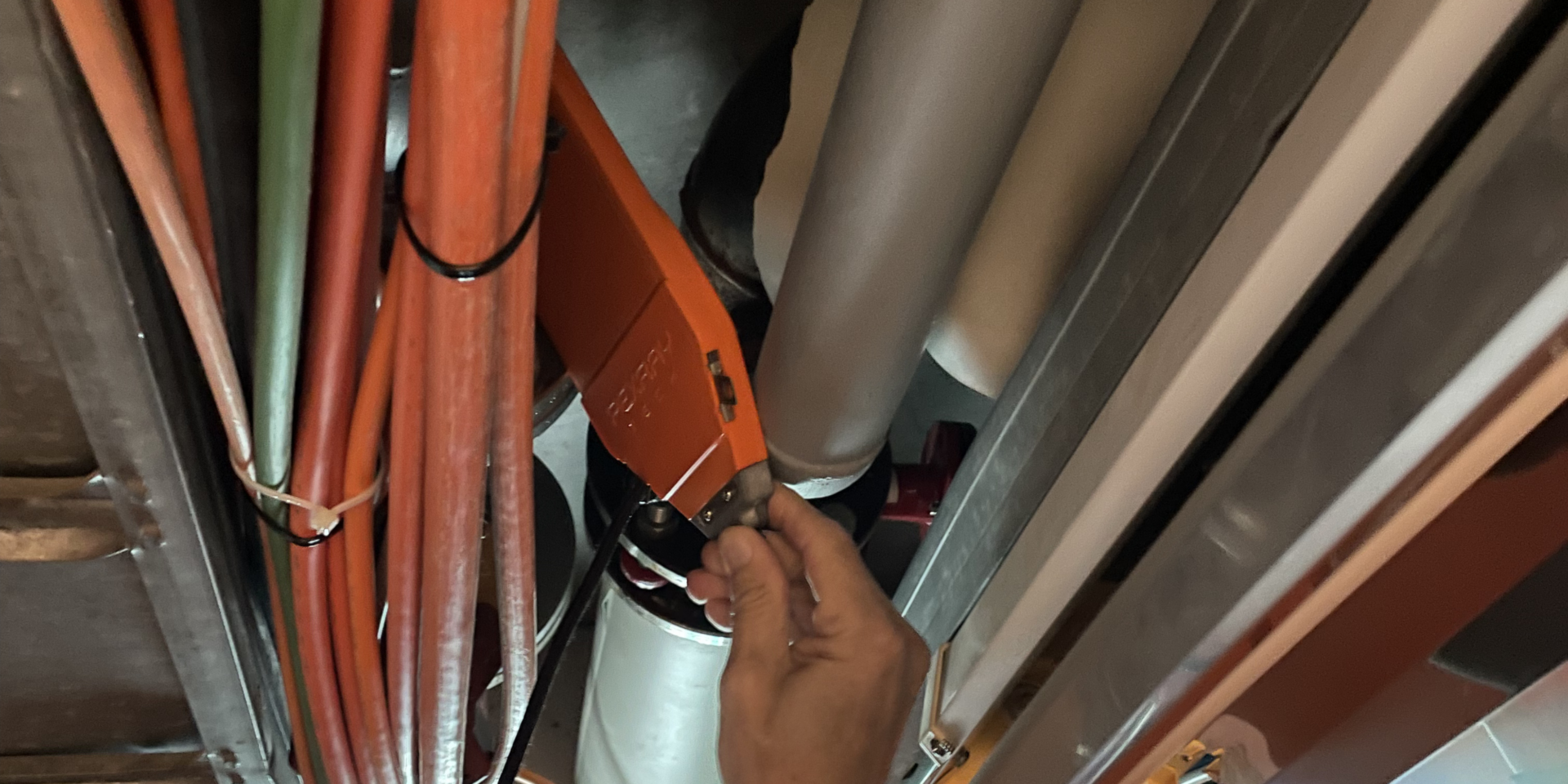

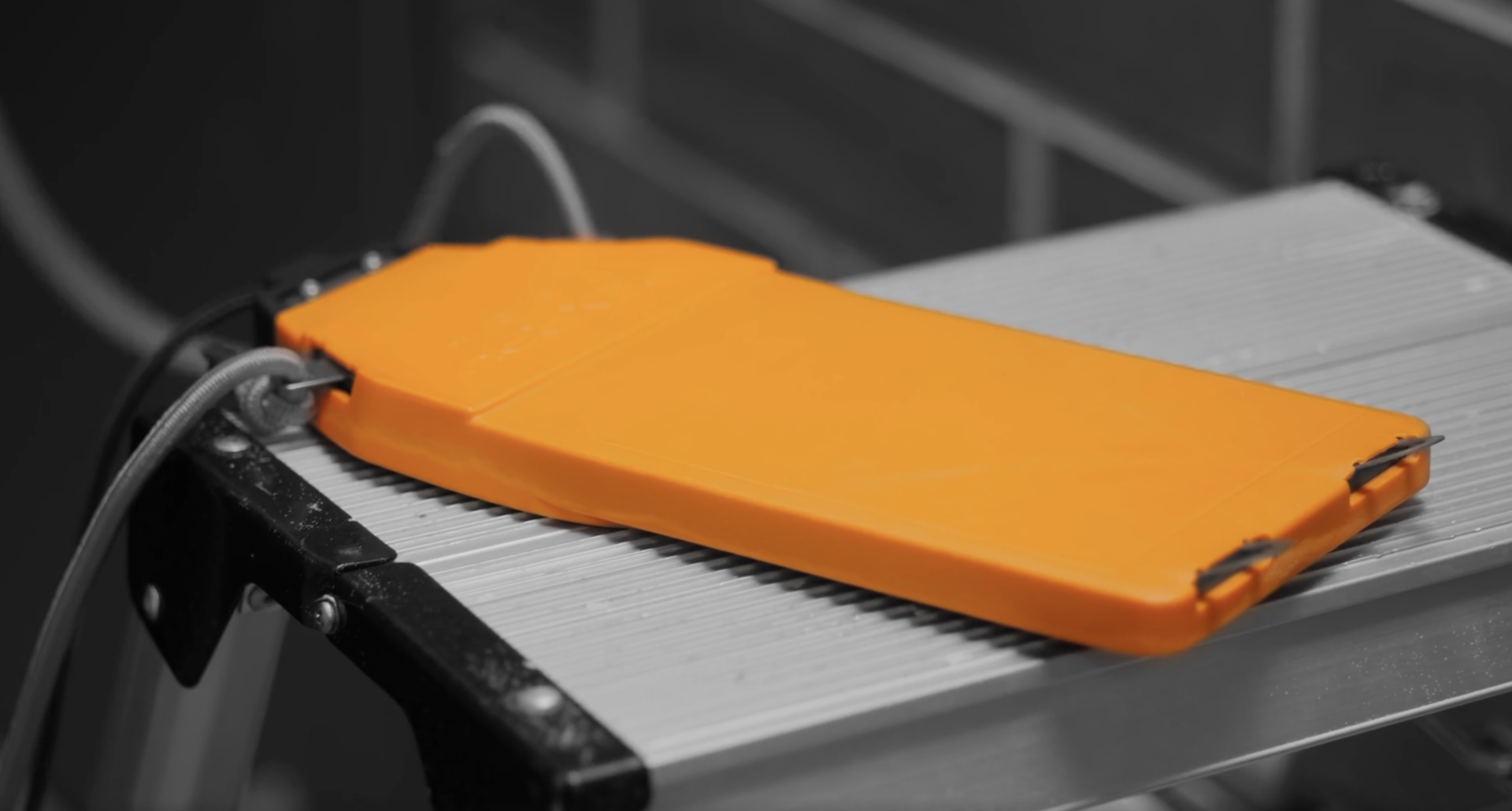

The first digital detector built for impossible spaces
PXR Micro 10 combines an ultra-slim design with exceptional light weight, making it easy to handle and ideal for inspections in tight or demanding environments.

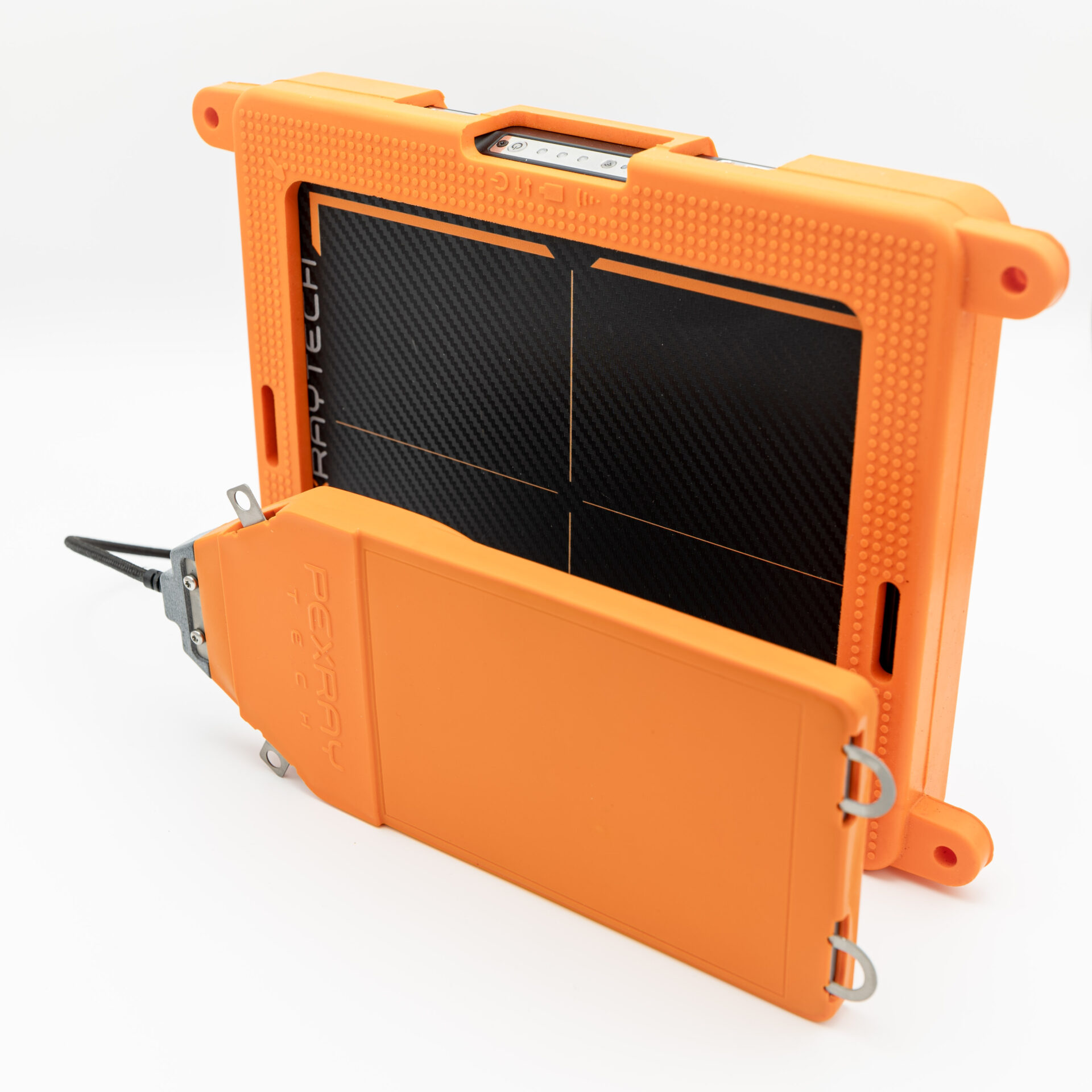

Ultra-slim 100 μm detector design

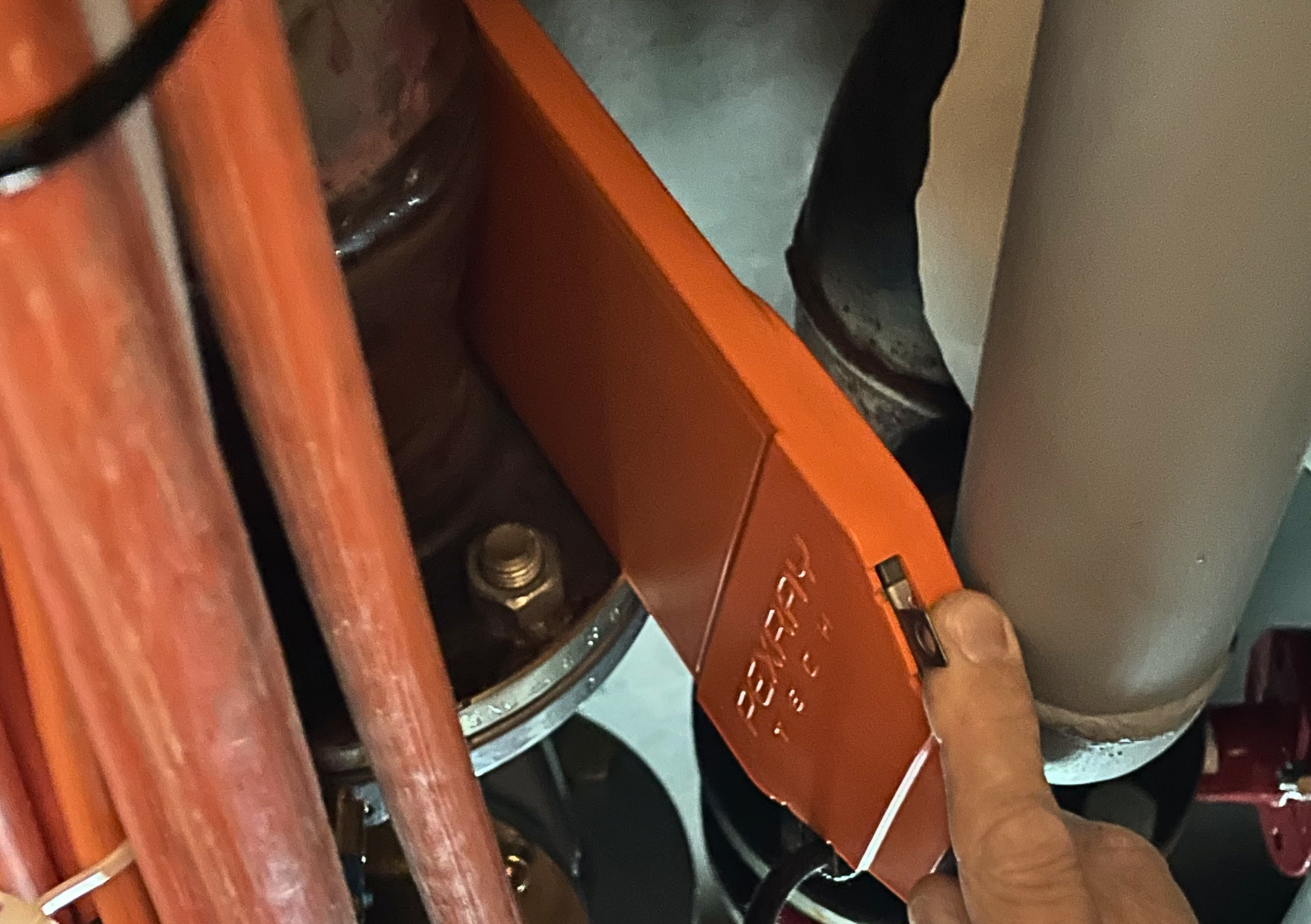

The ultra-slim design enables inspections in tight and hard-to-reach areas where conventional panels cannot fit.

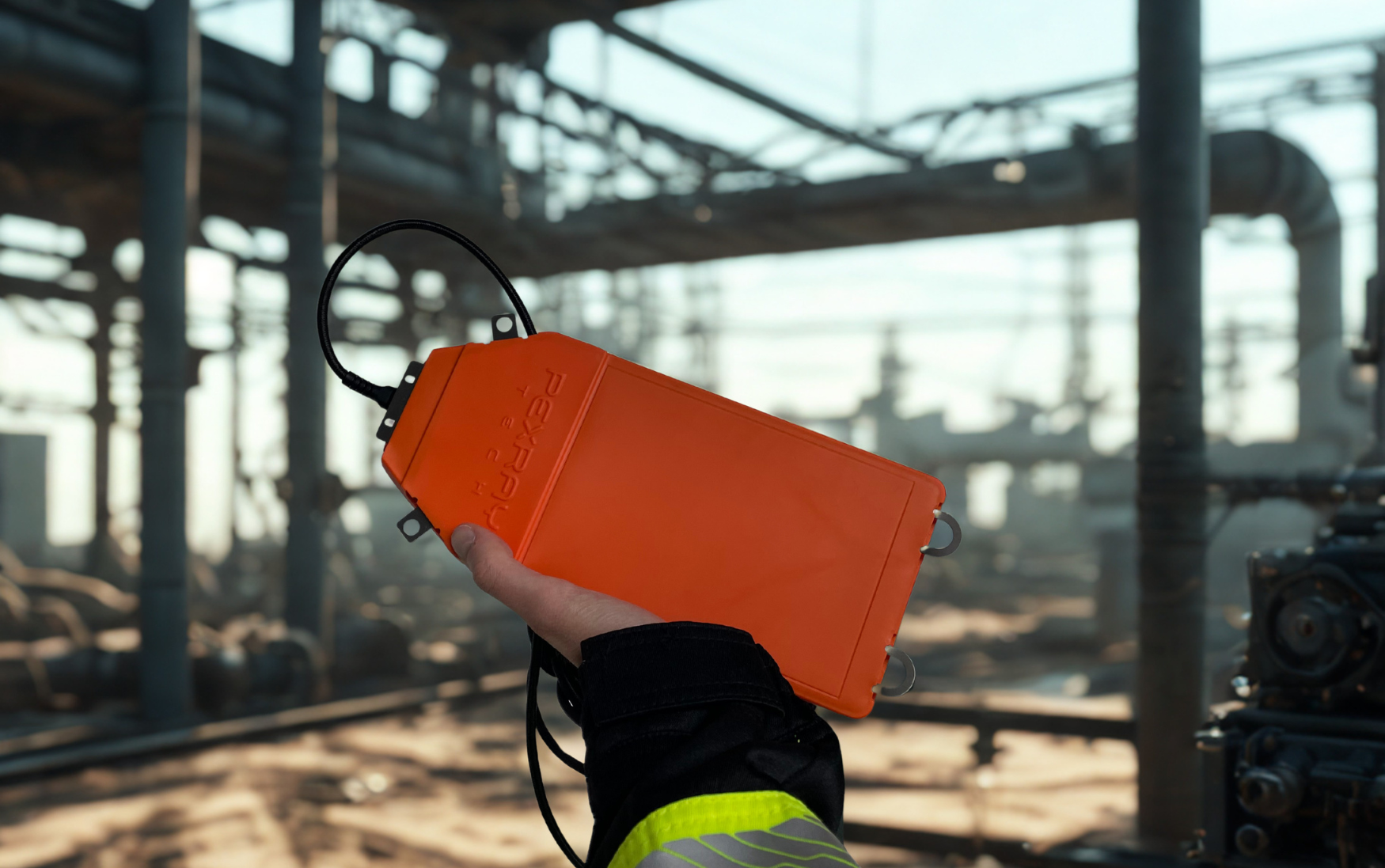

Lightweight – only 1.2 kg
Compact and lightweight design ensures easy handling and efficient operation during field inspections.
Extremely long battery life – up to 10 h
Designed for long inspection sessions, delivering hours more operating time than conventional flat panel detectors.
Rugged environmental protection
Sealed against dust and water exposure, ensuring reliable performance in demanding inspection environments.

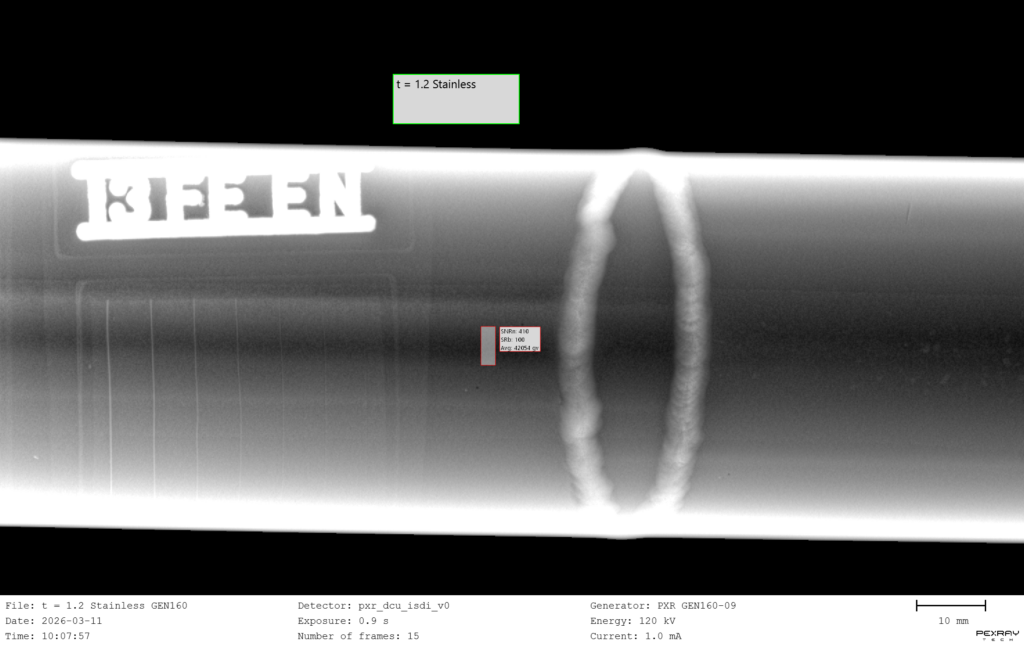

Reliable DWDI performance with PXR Micro 10
The DWDI method test highlights the performance of the PXR Micro 10 as a key component in a well-balanced digital radiography system. In combination with the PXR GEN160-09 generator, the Micro 10 panel enables efficient inspections with high image quality, even when longer source-to-detector distances are required to meet ISO 17636-2 Class B standards.
Thanks to its high sensitivity and optimized resolution, PXR Micro 10 supports fast exposure times and reliable detection across a range of material thicknesses. The results demonstrate that pairing a compact generator with a high-performance DR panel like Micro 10 ensures strong penetration capability while keeping radiation doses low.
This makes PXR Micro 10 an ideal choice for demanding DWDI inspections, where consistent image quality, efficiency, and system balance are critical.

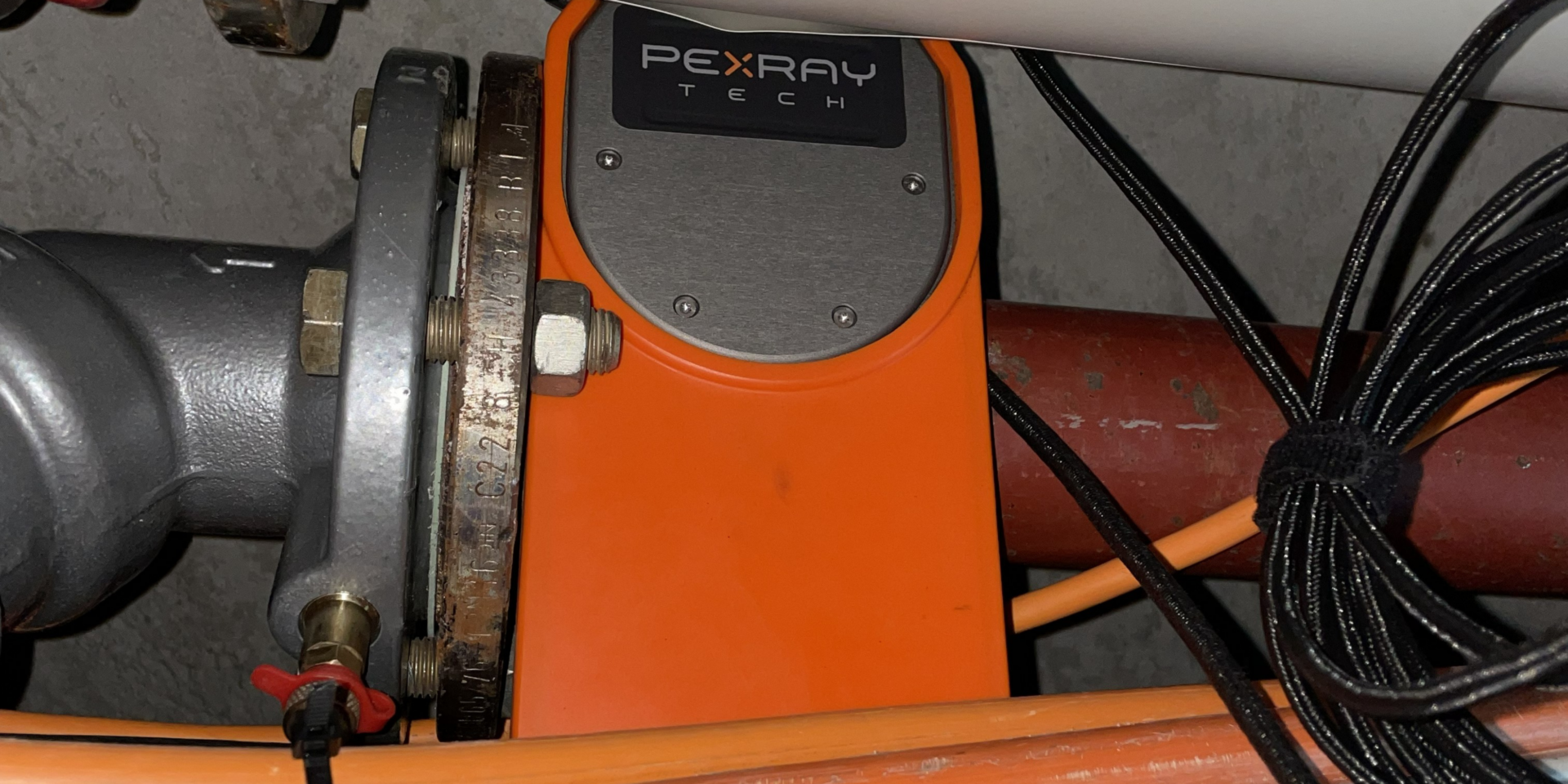

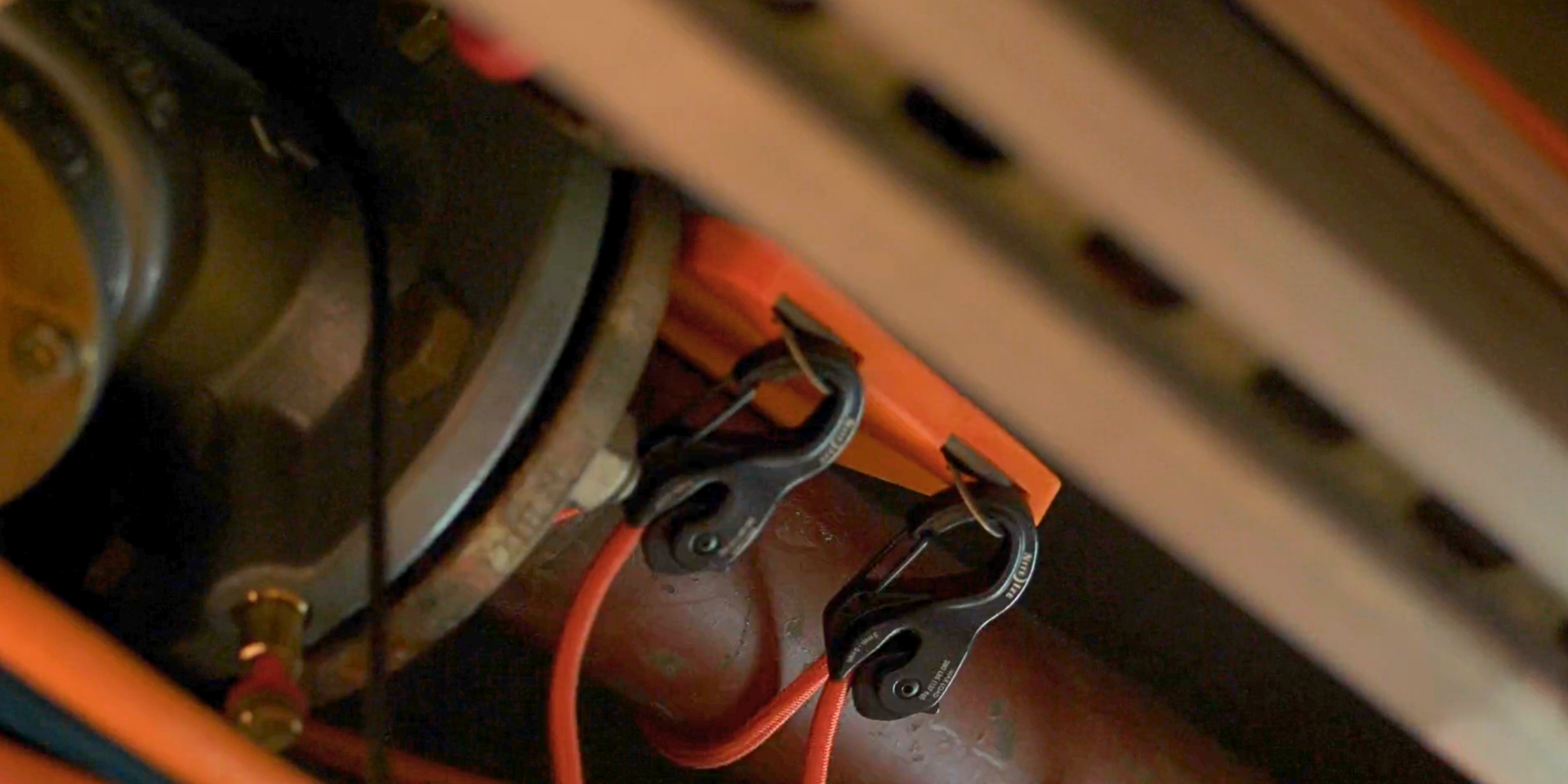

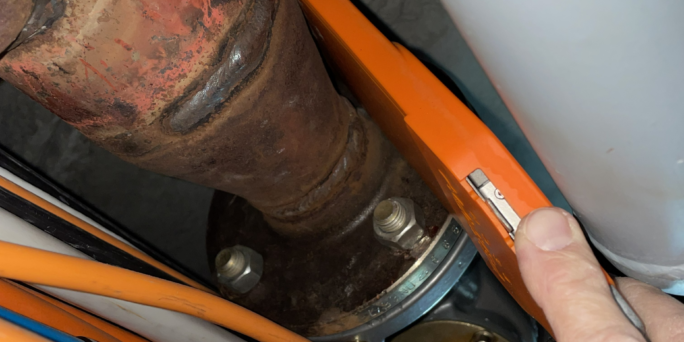

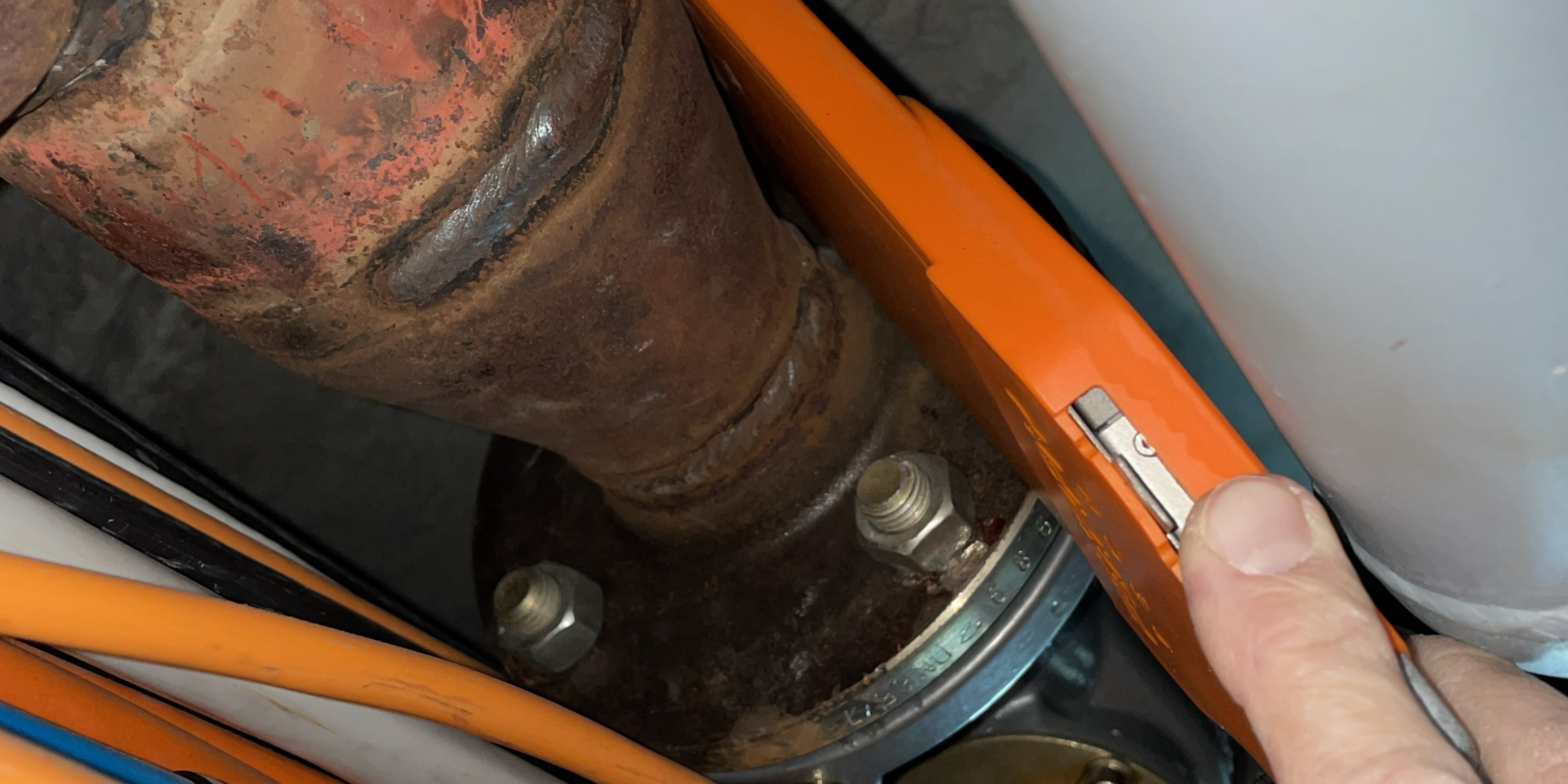

Fast and easy pipe mounting

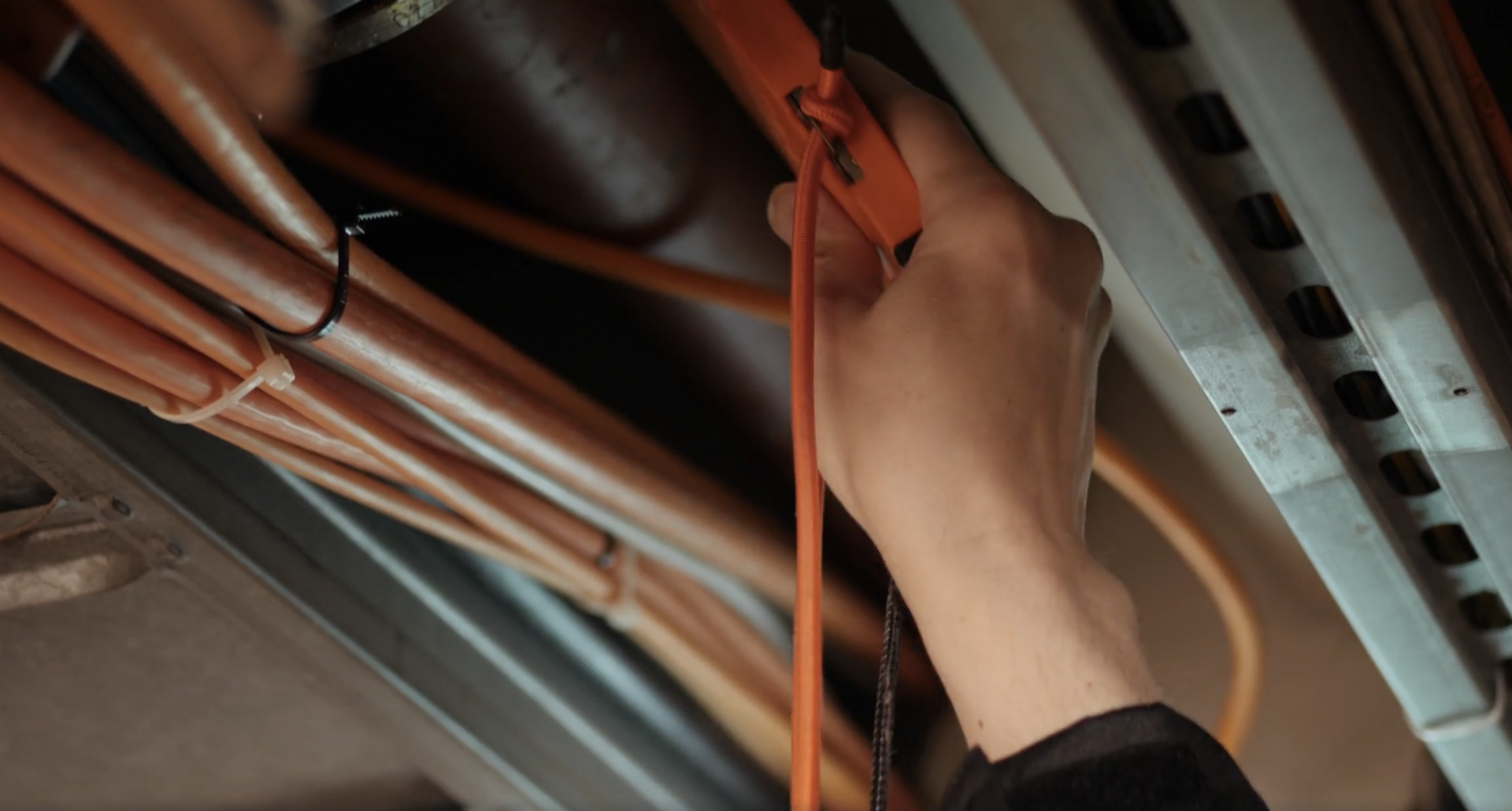

PXR Micro 10 is designed for effortless mounting directly onto pipes, making setup fast and straightforward in the field. Its compact and lightweight construction allows it to be positioned quickly and securely, even in tight or challenging inspection environments. This ease of installation helps reduce preparation time and ensures smooth, efficient workflows on site.
Typical applications
Pipe inspections in tight spaces, such as superheater tubes in power boilers or tightly packed process piping.
Extremely confined areas such as aircraft structures.
Inspection possibilities are virtually endless.

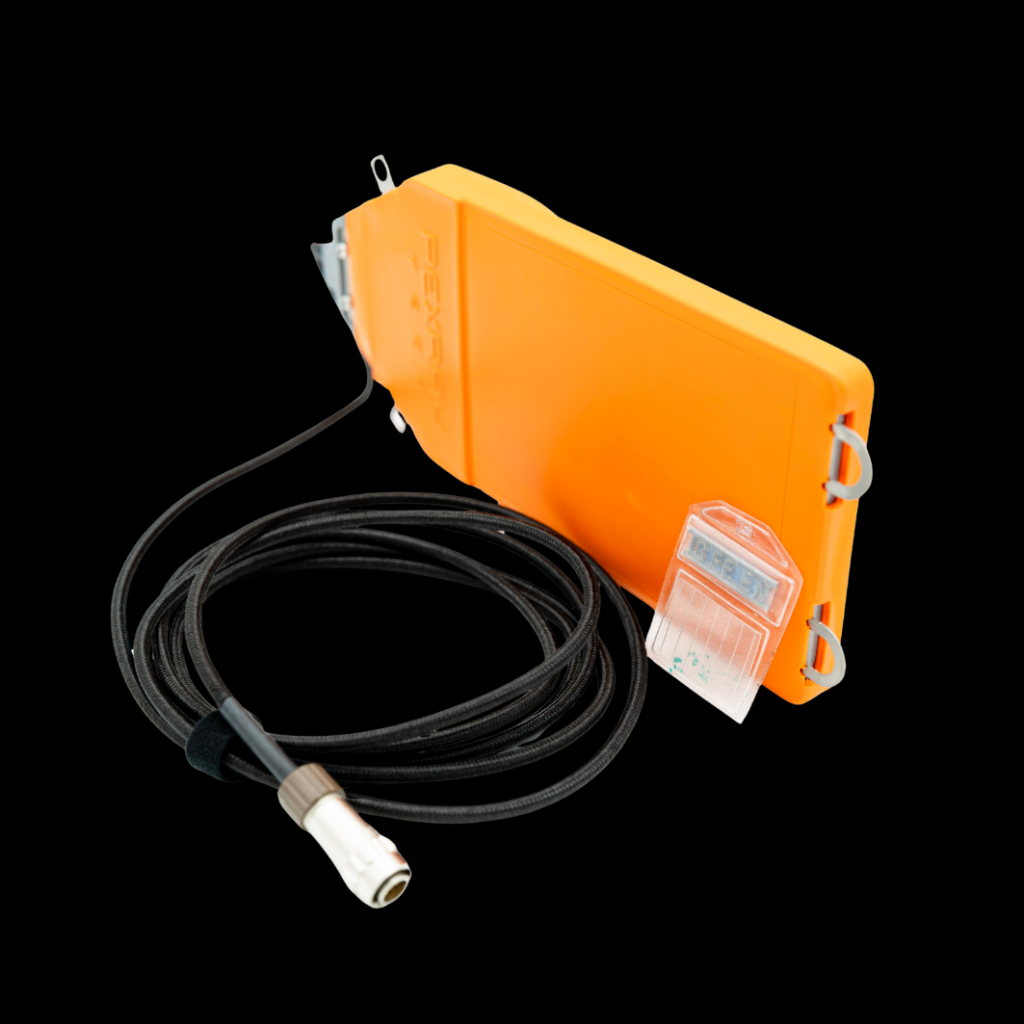

Technical specifications
| Resolution | 100 μm / D10 |
| Energy range | 30 – 225 kV, constant potential |
| External dimensions | 241 x 107 x 13.6 mm (bare detector), 266 x 113 x 18 mm (with cover) |
| Active area | 103.1 x 153.5 mm |
| Weight | 0.8 kg (bare detector), 1.2 kg (with cover) |
| Battery life | Up to 10 hours, with interchangeable battery |
| Operating temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Connectivity | Connected to the PXR DCU with a cable |

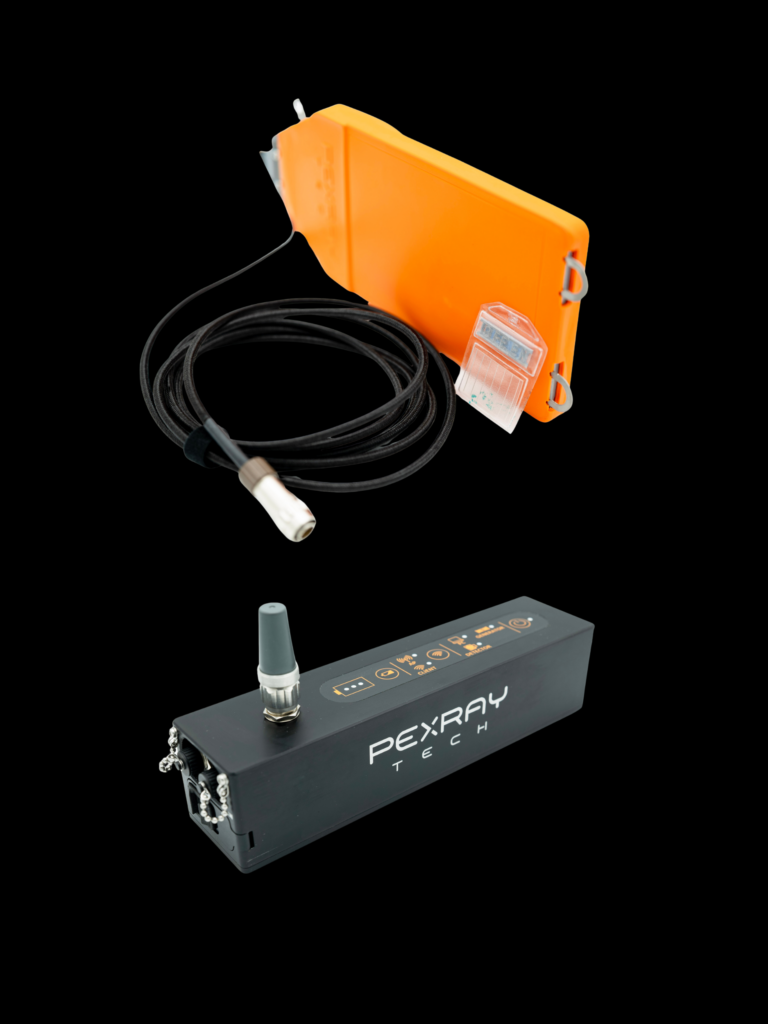

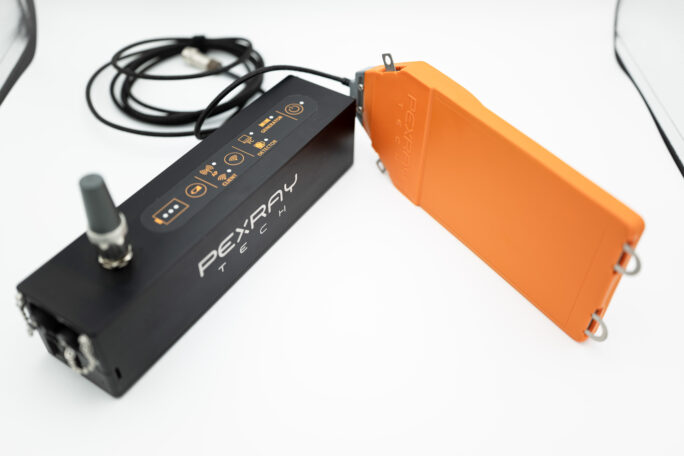

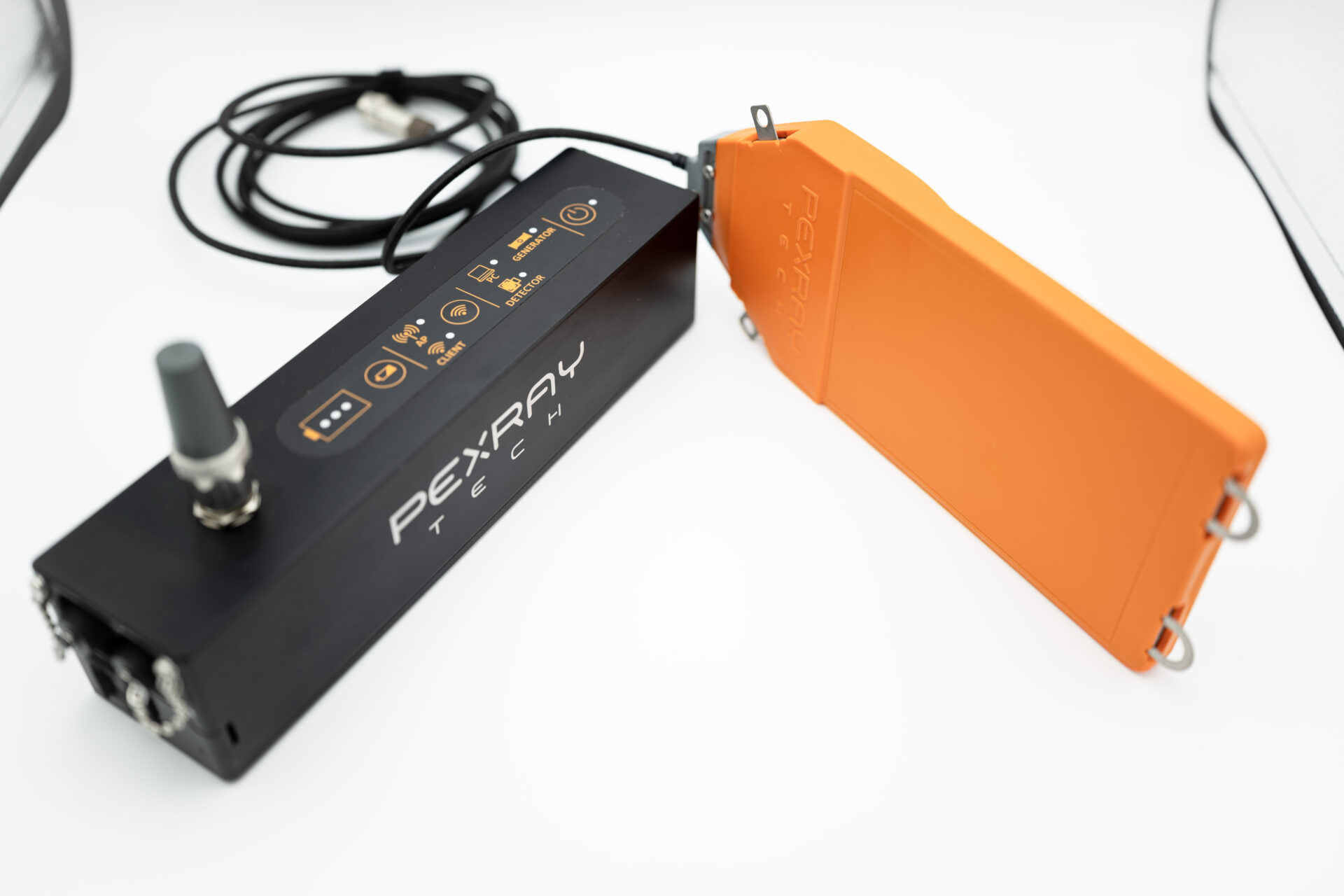

Always sold as a complete kit
The system is delivered as a complete kit, including everything required for operation:

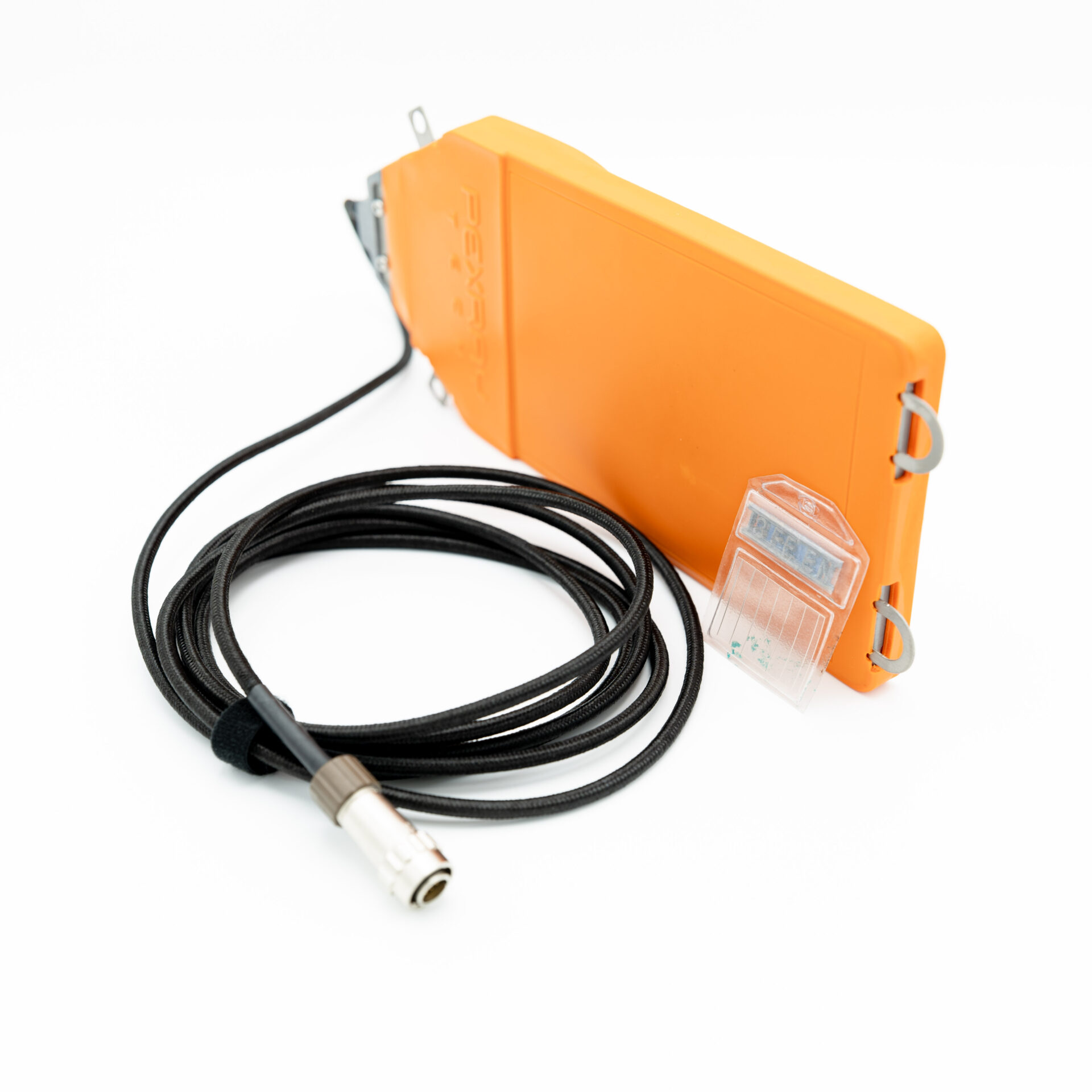

- PXR Micro 10 detector with fixed cable
- PXR DCU (detector control unit)
- AC/DC power supply
- Power cord
With our kits, you’ll have all the essentials in one package.

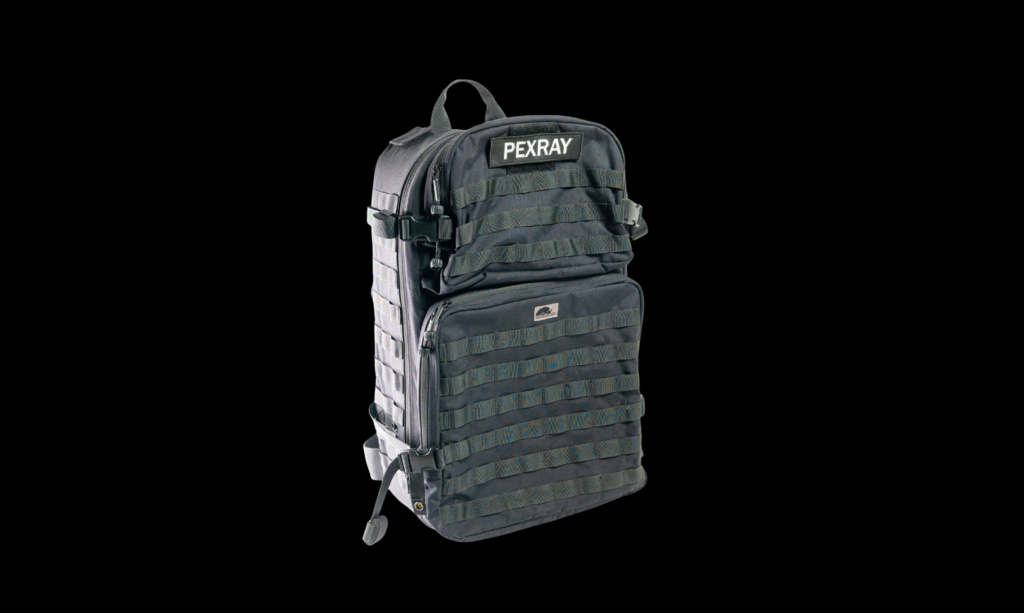

Optional backpack available
An additional backpack is available for demanding environments – an absolute must in difficult terrain, climbing or when moving longer distances.
